Recently, Move Speed movement has launched a variety of charging treasure new products, including 10000mAh magnetic wireless charging power supply, 40000 / 57000mAh charging monster series, mini 10000mAh 22.5W super fast charge mobile power, 65W two-way fast charge mobile power, for the majority Consumers offer a rich choice.
Today, the charging head network continues to bring the mini 10000mah 22.5W super fast charge charging treasure dismantling, such as its name, this charging treasure body is small, compared to the market standard 10,000 mAh products is more obvious Sense, and support Huawei 22.5W Super fast charge, can meet Huawei’s mobile phone fast charge requirements. In addition, 20W PD fast charge can also be charged for iPhone 12 and other mobile phones. Let’s take a look at the specific work of this product. What is the reason for this mini.
First, moving the speed mini 22.5W super fast charge charging treasure appearance
Positive packaging box is printed with the Move Speed brand, product name and appearance map, in addition to 22.5W fast charge, can go to the aircraft and other selling points.
Packaging contains charging treasure, data cable, manual and warranty card.
The mobile power is made of aluminum alloy shell, and the surface sand is rounded, and the overall use is also very good. There is a power display on the front of the fuselage, and the bottom right corner is printed with the Move Speed brand and 22.5W Super Charger.
Product parameters in the back of the fuselage
Model: YSPBV10-22G
Battery type: lithium polymer battery
Battery energy: 10000mAh / 38.5Wh
Rated capacity 1: 6500mAh (5V1A)
Rated capacity 2: 4650mAh (5V3A)
USB-C input: 5V2.4A, 9V2A
USB-C output: 5V3A, 9V2.22A, 12V1.5A
USB-A output: 4.5V5A, 5V4.5A, 9V2A, 12V1.5A
Total output: 5V3A
Energy conversion: ≥ 60% (5V3A)
The product has passed FCC, CE certification.
The charging treasure is small and thin, and the value is quite high.
The LED display can accurately display the remaining power, and the user is more convenient, and there is a 1000mAh capacity in the bottom screen.
The top of the fuselage is equipped with a power button and a 1A1C interface, and the interface is toned.
There is a special contact with the front end of the USB-A tab.
The corresponding identification is printed on the back of the fuselage.
The measurement of the body length is 105.62 mm.

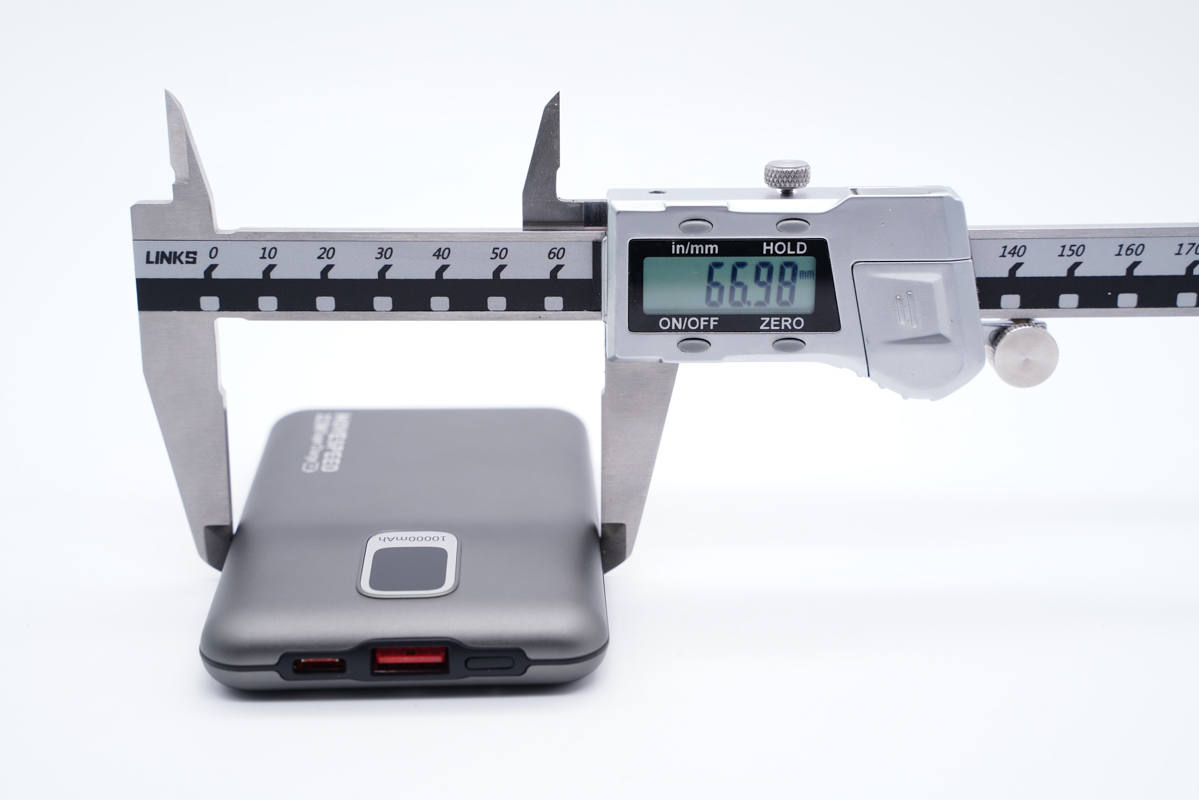

The width is 66.98 mm.
The thickness is 14.87 mm.

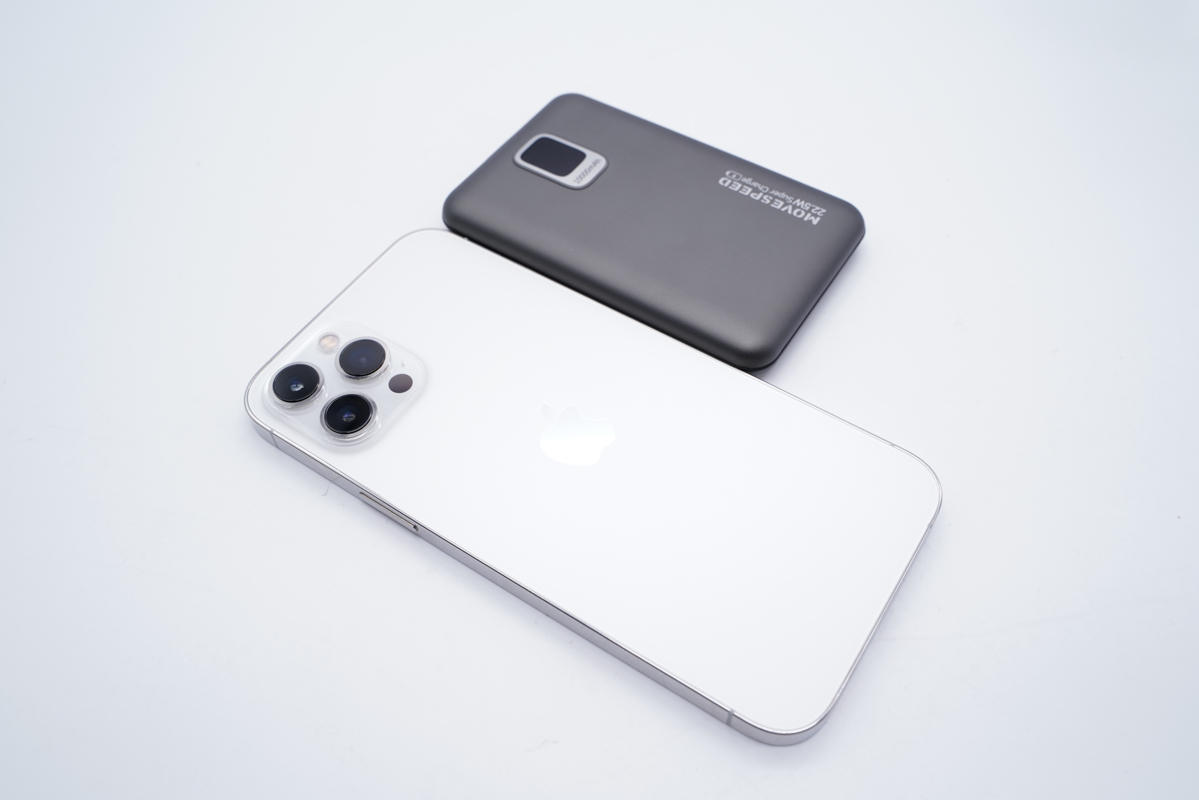

Compared with iPhone 12 Pro Max, moving this mobile power is much smaller.
Take the intuitive feelings in your hand and feel comfortable.
The net weight is about 184g.
The APPLE2.4A, Samsung 5V2A, DCP protocol, and QC2.0 / 3.0, AFC, FCP, SCP, VOOC / Dash / Warp, PE2.0 are used to use Chargerlab Power-Z KT002.
Using KT002 measured USB-C port support QC2.0 / 3.0, AFC, FCP, SCP, PE2.0, PD3.0, and PPS fast charge protocols.
In addition, the PDO packet shows that the C port also has 5V2A, 9V2.33A, 12V1.7A three fixed voltage gear, and 5-5.9V3A and 5-11V2A two sets of PPS gear.
Using a shift speed to charge the iPhone 12 Pro Max, the charging power is measured using ChargerLab Power-Z KM001C to measure the charging power to 9.16V 2.1A 19.21W, and the green lightning indicator indicates that PD fast charge is performed.
Second, shift speed mini 22.5W super fast charge charging treasure dismantling
Unpack the body shell, the two semi-metal shells are fixed by the edge plastic casing card, and the electrical core is welded.
The cell and the PCB plate are isolated between green insulation paper.
The other side of the battery is also a gelatin fixation, and the PCB board is fixed using a screw.
There is a plastic shell insulation isolation in the outer casing under the PCB plate.
The bottom of the battery is attached to the insulation paper protection.
The battery is from GPC Grinde, the specification is 10,000mAh / 3.85V / 38.5WH. On April 14, 2021, the specification is 80mm, the width is 62mm, the thickness of 12mm; the battery brand is a common Greendee in the industry.
By calculating the energy density of its battery, according to the energy density formula: battery energy / volume = 10000mAh * 3.85V / 12 * 62 * 80mm, the conversion unit can know that the energy density of the battery is 646.84WH / DM. The most common 1260110 battery on the market has a energy density of 467.17Wh / dm. The energy density has increased by 38% compared to the core reason why the charging treasure is thin.
Thermistor close-up for battery temperature monitoring.
A view of the PCB board, the right side has a mobile power master chip and inductance, and there is a lithium electric protection chip on the left.
Another side of the PCB board, corresponding to the main control chip and inductance, the lump is increased, and the center is the LED screen.
The lithium electrical protective chip uses a core micro XB8886M, which is an integrated battery protection chip.

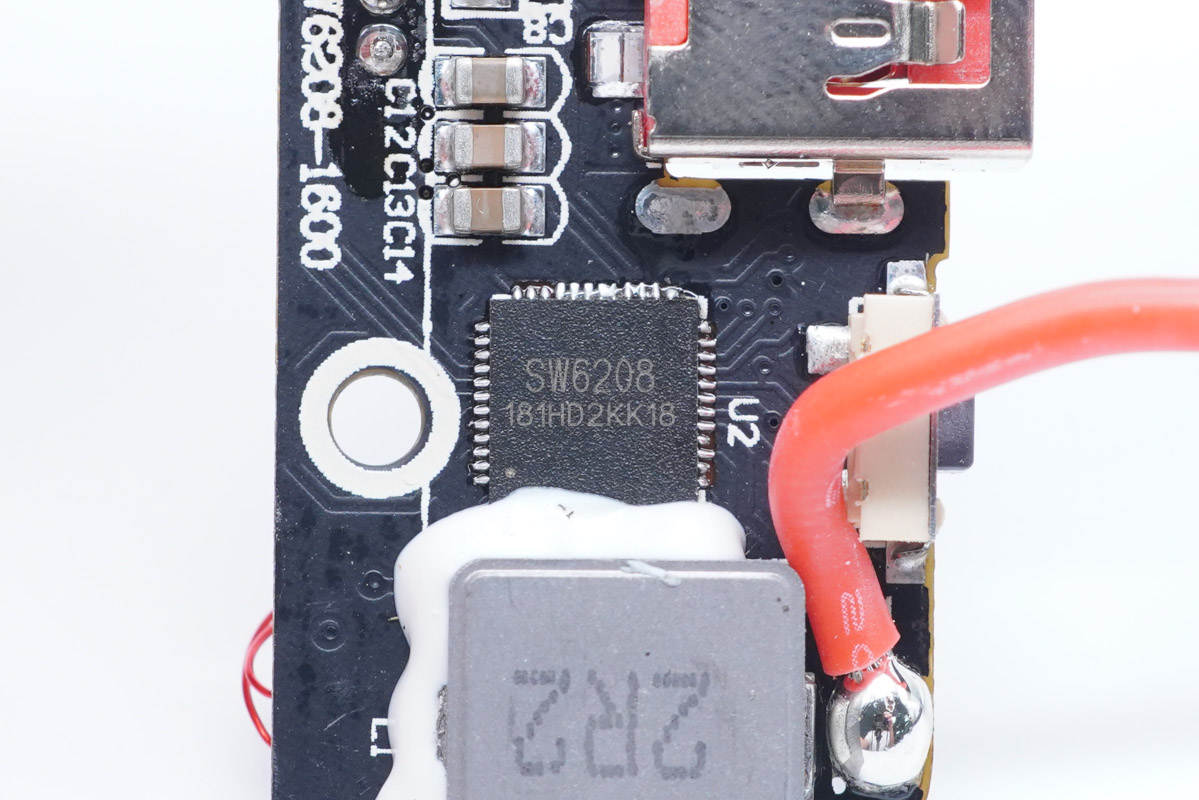

The mobile power master chip uses intelligent SW6208. This is a highly integrated multi-protocol two-way fast-moving mobile power supply for a single-chip, supporting A + A + B + C + L, any mouth fast charge. It integrates 5A high-efficiency switch charging, 22.5W high-efficiency synchronous boost output, supports PPS, PD, QC, AFC, FCP, SCP, PE, SFCP, etc. Various fast charge protocols, power meter, digital tube / LED light display and The corresponding control management logic. Only a small amount of devices in the periphery can form a complete high-performance two-way fast-charge mobile power solution.
Intelligent SW6208 specification information.
The charging head network learned by dismantling, using the smart SW6208 and the magic fox 22.5W fast charge mobile power, Taipower 20000mAh 2A1C fast charge mobile power, Jingdong Beijing 30000mAh USB PD fast charge mobile power, Philips 10000mAh 22.5W fast charge Mobile power, AUKEY stent wireless charge mobile power 20000mAh, Zyxei 22.5W full protocol fast charge mobile power 10000mAh and other dozens of products.
2R2 lifting pressure inductance close-up, glue reinforcement.
Two 8205a MOS tubes are used for 1A1C interface switching.
Power button close-up, patch welding.
USB-A master close-up, duct fiber welding, front end has special contacts and positive and negative wide.

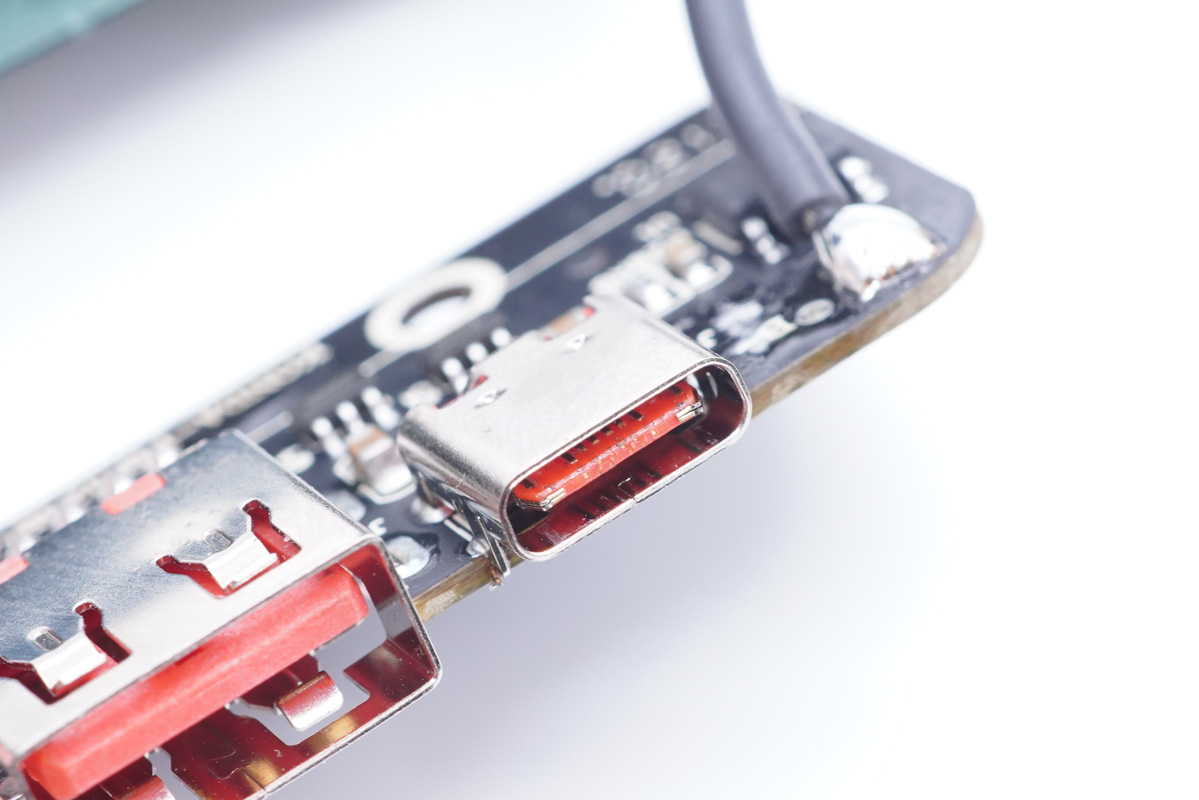

USB-C master close-up, via welding.
LED power display close-up.

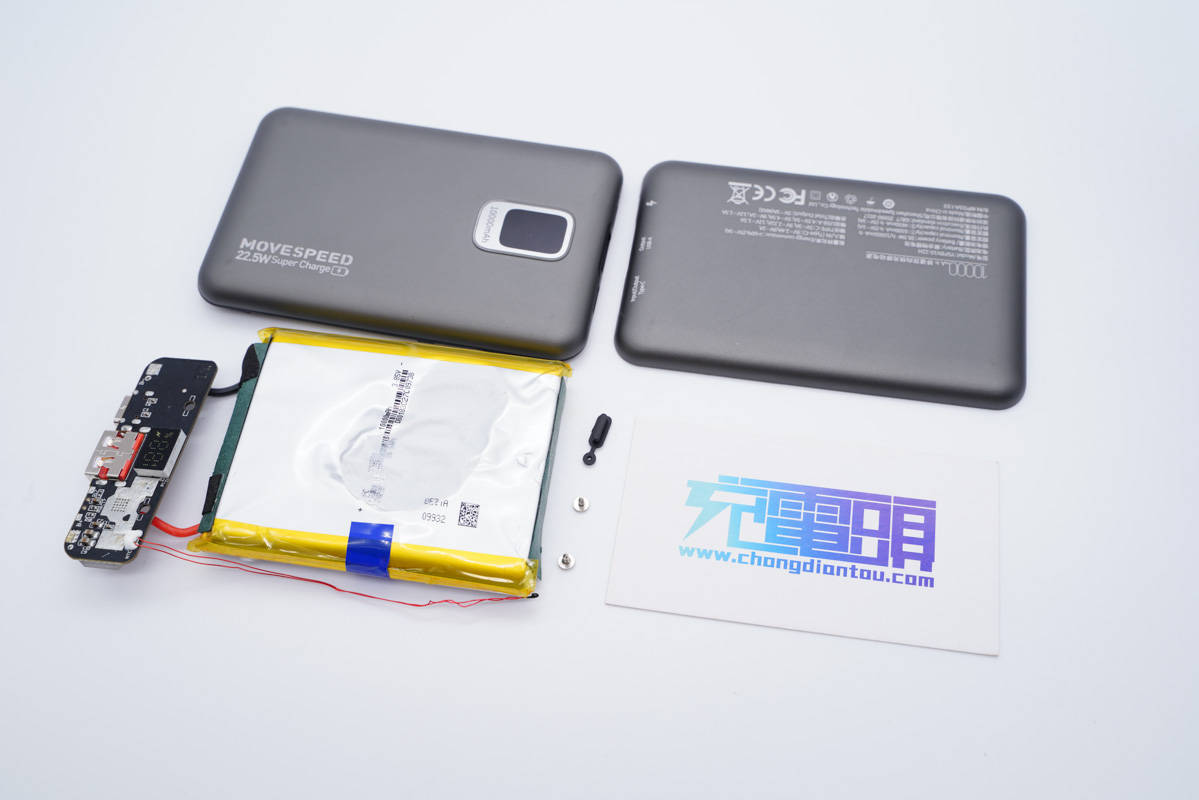

All disassembled, come to Zhang Quanjiao.
Charging head net solution summary

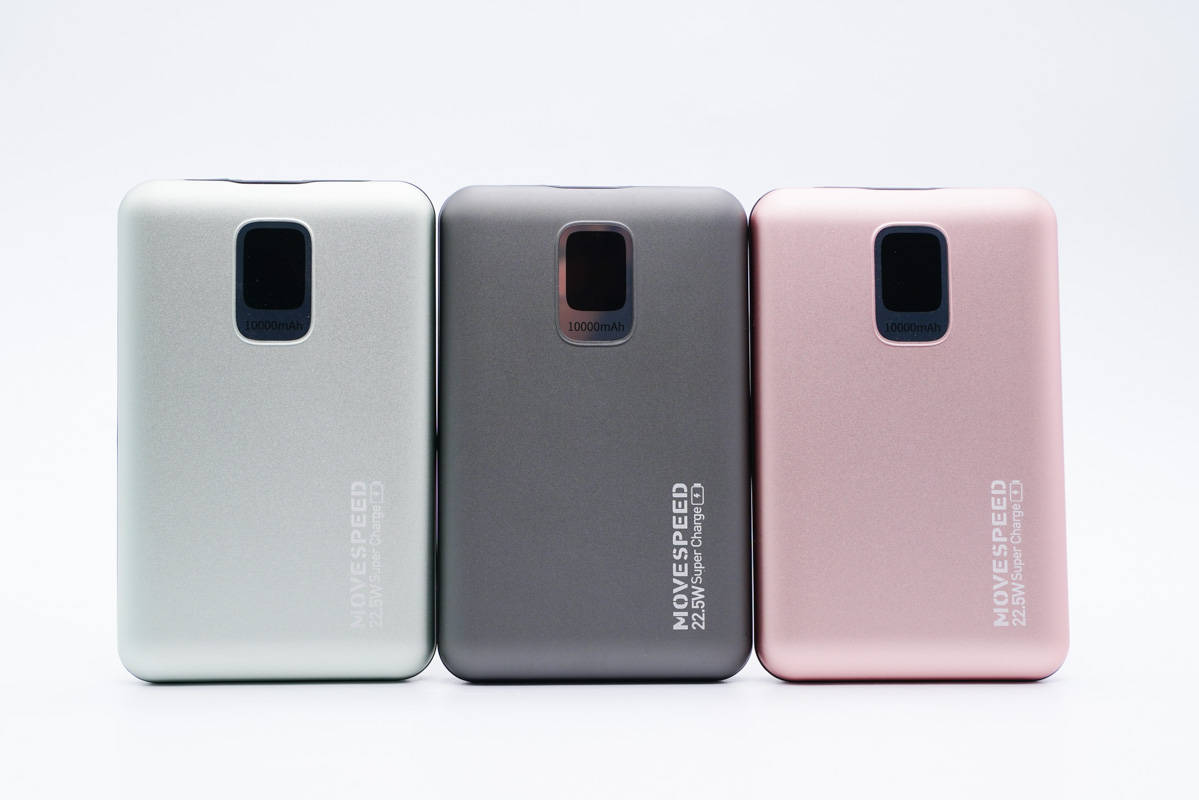

The speed of moving the speed is a wholly-owned brand of Olyda, and there is a line in the overall workmanship and quality. This MINI 10000mAh 22.5W super fast charge mobile power supplies the aluminum alloy material, the surface of the surface is round, not only small flat Easy to carry, and the overall is very refined, the color is high. The products are black, powder, and green three color matching, meet the purchase needs of different people. Also equipped with 1A1C million gold oil interface, support QC, AFC, FCP, SCP, VOOC / Dash / WARP, PE2.0, PD3.0, PPS all host fast charge agreement, can meet China-style, millet, Apple and other big brand mobile phone fast charge need.
The charging head network has been discovered by dismantling. The mobile power cell is from Grinde, using high voltage cells, this battery is also the key to this product. The front and rear ends of the battery have a blue-horn insulating paper protection, in addition to the glue reinforcement, and is equipped with a thermistor to perform temperature monitoring, and the core micro XB8886M is circuit protection. Mobile power master chip adopts a smart SW6208 high integrated two-way fast-charge solution, double-port input and output protocol identification voltage control and LED screen power display are achieved, and the performance is powerful, and the quality is reliable.
