Hello everyone, share a woman’s Korean casual pants today, and the procedure is probably divided into four steps.
Step 1: Style structure analysis
Step 2: Set the size of the clothes
Step 3: Design the main frame
Step 4: Design local structure
The overall pants are compared, and 8 tap of cone pants tube functions as high stovepipe, the waist is in the middle waist or the middle waist to 1 cm left and so. The front and rear waist were not designed, but the waist province existed, the reason why did not show it because they had merged in the waist.
The size of the hip is to add 2cm to the net body data to achieve comfort, the purpose of the fit, the legacy of the leg, the determination of the leg is also added to 1.5cm on the basis of the human body’s net, the knee is added 1cm. The length of the trousers should be designed according to the data of the human body. The positive waist of the 160/84 human body is about 98cm. The distance from the ankle to the bottom of the foot is about 6cm, and it is inferred, the position is from the ankle The distance of the joint should be 98-6 = 92cm.
The waist position of this trousers is in the middle, then it should be left from the waist to the falling 3-4cm. So this pants
Waist position
The distance to the ankle joint should be 92-3 = 89cm. From the figure, the pants is about 7cm from the pants and the ankle joints, so the trousers should be around 89-7 = 82cm. In front of the trousers, open the door and pull the zipper, which is convenient to wear, and the side waves are designed. After the back, the waist is designed, rich in rear film, the margin of the rear waist is also consolidated in the tile.
Step 2: Garment size setting
Apparel is divided into two cases: tailor-made and ready-to-wear production. Tailor-made is the usual body tail, who is looking for you to measure his body size, mainly the size related to clothes, such as: bust, shoulder width, waist, hip circumference, leg circumference, neck The circumference is not required to have a size that is not related to the clothes. When the quantity, the less the clothes wearing the clothes, theoretically, the most scientific data is net bobbin, which is the data that is not worn in the state of the clothes.

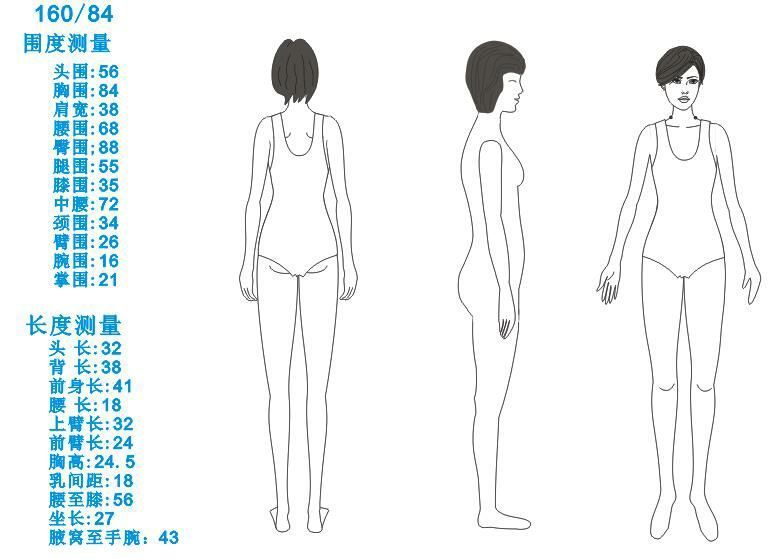

Number: 160/84 (height 160cm / net chest 84cm, net waist 68cm)
Garment production is a large amount of fabrication of clothing companies or clothing plants, one version may have to produce thousands or tens of thousands, and even more. In this case, the hand of human body data cannot be measured casually, and most of us choose a standard data.
Be
The basis of the typography is usually selected by 160/84 (height 160cm / net breast-around 84CM) as a medium-size data. When the version is subjected to the size of this human body data, the size of the garment is obtained according to the actual situation of the style.

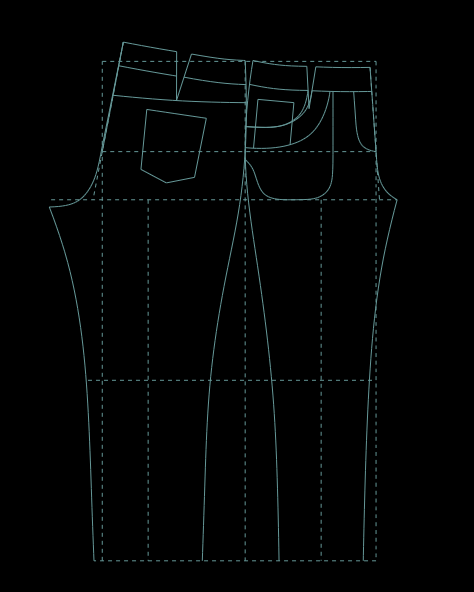

(打 打 structural map)

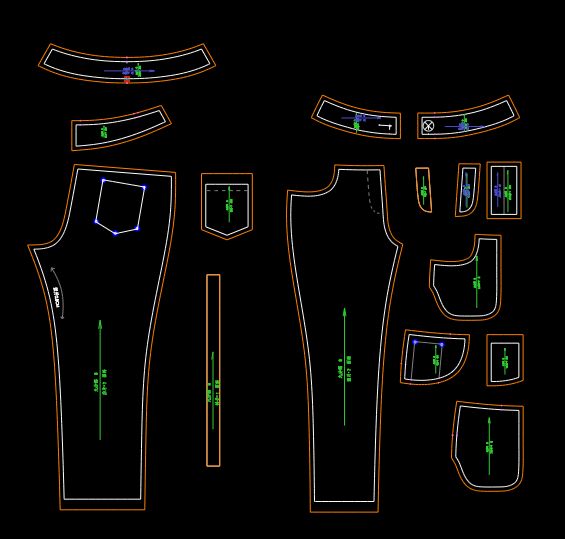

(Paper sample)
Today, this pants we chose 160/84 net waist 68cm body shape as a basis, and the resulting cloth size is:
Pants length: 82cm
Waist: 72cm (medium waist)
Hip circumference: 88 + 2 (relaxation) = 90cm
Knee: 35 + 1 (relaxation) = 36cm
Pinter: 32cm
Step 1: Style structure analysis
